Architectural Cable Railing Systems & Wire Rope

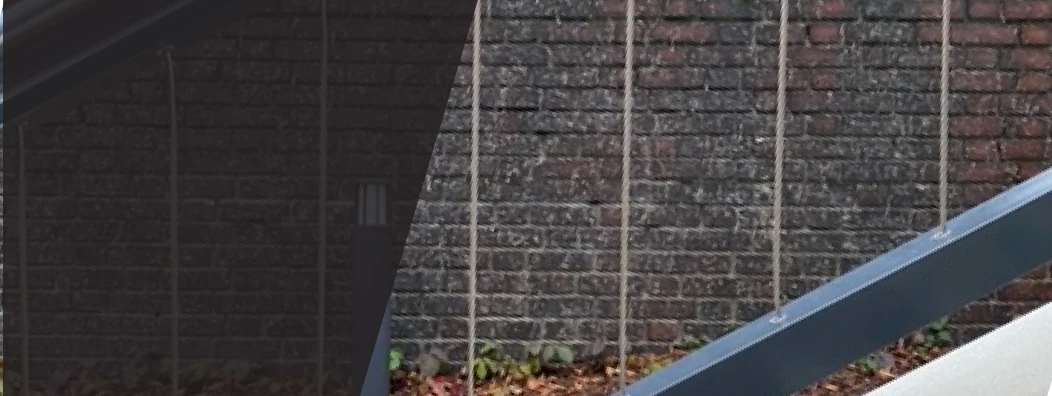

Architectural wire rope and cable assemblies are primarily used in cable railing systems, balustrades, and structural design elements. They are commonly installed in residential, commercial, and mixed-use spaces to provide safety while maintaining open views and modern aesthetics. Cable railings are typically horizontal or diagonal for stairs and ramps, but they can also be oriented vertically.

Cable railing systems use tensioned stainless steel cables instead of traditional balusters or panels. The cables are secured between posts and tensioned to create a strong, stable barrier that meets safety requirements while offering a clean, minimalist look. 1×19 is the most common strand construction for cable railings. 1/8″, 3/16″ and 1/4″ are the most common diameters for cable railings.

Architectural cable assemblies are typically made from stainless steel due to its strength, corrosion resistance, and clean appearance. Stainless steel is ideal for both indoor and outdoor applications, especially in visible design elements. Stainless steel type 316 is the best option for most projects.

Common cable diameters for architectural applications range from 1/8 inch to 3/8 inch. The appropriate size depends on the project requirements, including span, load, and local building codes.

Swaged fittings are permanently attached to the cable using hydraulic or mechanical compression, creating a clean and secure connection. Swageless fittings do not require crimping and can be installed using basic tools, making them ideal for field installation and adjustments. Some swageless fittings have an internal wedge that compresses the cable when the outer components screw together. Most wedge systems can be used for 1×19, 7×7 or 7×19 standing constructions, but always consult with the factory or distributor to verify compatibility. Other swageless fittings are Push-Lock or Pull-Lock design, which use a built-in spring to wedge only against the outer wires, and these are typically only suitable for 1/8” 1×19 or 3/16” 1×19.

Cable assemblies can be tensioned from one side or both sides depending on the design. Turnbuckles and other threaded tensioning fittings such as threaded terminals and receivers are commonly used to adjust and maintain proper cable tension.

Yes, when properly designed and installed, cable railing systems can meet local building code requirements. This typically includes maintaining proper cable spacing (such as less than 4”), tension (such as 300 lbs), and height (such as 36”) to ensure safety and compliance.

Cable railing systems offer a modern and marine inspired aesthetic, unobstructed views, and long-term durability. They are low maintenance and provide a sleek, contemporary look that enhances both residential and commercial spaces.

Yes. Architectural cable assemblies can be customized based on cable diameter, length, end fittings, and mounting surfaces such as wood or metal posts. This allows for flexibility in both design and functionality.

Common fittings include threaded terminals (acorn nut optional), receivers, turnbuckles (such as deck toggle and toggle jaws), fixed end fittings (such as radius ferrule and fixed jaw), and swageless connectors. These components allow for secure installation, tension adjustment, and long-term performance.

Yes. Stainless steel cable railing systems are typically stainless steel type 316, which is highly resistant to corrosion and are well suited for outdoor environments, including decks, balconies, and waterfront properties.

Installation methods vary depending on the project, from residential DIY to commercial contractors. Fabrication may include factory machine swaging, field hand tool crimping, or field installation of swageless terminations. The chosen method depends on design requirements, installation environment, and desired finish.

Architectural cable assemblies are used by architects, designers, general contractors, steel fabricators, and property managers across residential, commercial, and mixed-use construction projects.

Cable assemblies create a clean, minimal look that complements modern or marine design trends. Natural stainless steel cable railings appear bold and embody rustic yet classic charm when coupled with wood posts. When paired with black finish metal posts, cable railings invoke industrial aesthetics. When combined with aluminum or stainless posts, cable railings feel modern. Their ability to provide safety without blocking views makes them a popular choice in contemporary architecture.

Lexco Cable combines decades of experience with precision manufacturing to deliver high-quality architectural cable assemblies. Their ability to customize solutions and provide a wide range of fittings ensures reliable performance and design flexibility to satisfy requirements of nearly any project.
