CLIPS and CLAMPS

Wire rope clips are used to create loop ends in wire rope and aircraft cable assemblies. They are commonly used for field installations where a cable loop needs to be formed without swaging. Wire rope clips can be used in rigging, suspension, industrial cable systems, safety cables, and custom wire rope assemblies depending on the application and load requirements.

Yes. Wire rope clips are often called wire rope clamps. They usually consist of a U-shaped bolt, a saddle, and two nuts that clamp the wire rope in place. The terms are commonly used interchangeably, although specific clip and clamp styles may vary depending on the application, material, and required performance.

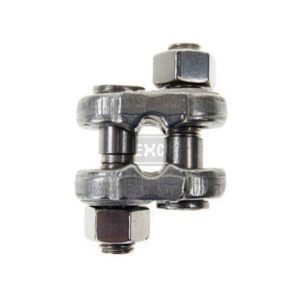

Drop forged wire rope clips are typically stronger and are often preferred for load-bearing or heavy-duty applications. Malleable wire rope clips may be used for lighter-duty or non-critical applications. The right choice depends on the cable diameter, load requirements, environment, and whether the assembly is being used in a critical application.

Yes. Stainless steel wire rope clips, especially Type 316 stainless steel, are often used for outdoor, marine, architectural, and corrosive environments because they offer improved corrosion resistance. Galvanized wire rope clips may also be used outdoors, depending on the exposure level and application requirements.

When requesting a quote, provide the wire rope diameter, cable construction, clip or clamp style, material preference, quantity, load requirements, and application environment. If available, include drawings, specifications, photos, or part numbers so Lexco can recommend the correct wire rope clip, clamp, or custom cable assembly.
