SWAGING AND CRIMPING CAPABILITIES

Lexco® Cable is an industry-leading wire rope assembly manufacturer with a wide variety of swaging and crimping capabilities to meet the needs of your cable assembly application.

LEXCO® CABLE
SWAGING AND
CRIMPING
CAPABILITIES

LEXCO<sup>®</sup> CABLE SWAGING AND CRIMPING CAPABILITIES

SWAGING AND CRIMPING CAPABILITIES

Lexco® Cable is an industry-leading wire rope assembly manufacturer with a wide variety of swaging and crimping capabilities to meet the needs of your cable assembly application.

LET’S GET ATTACHED

Lexco® offers an extensive tooling inventory and hydraulic presses to swage numerous end fittings for use in your wire rope assembly. We can swage spherical, cylindrical, and hex profile fittings ranging from swaged studs and sleeves to button stops, single and double shank balls, and many more. For a complete list of end fittings we offer, please visit our catalog.

Swaging is the process of cold pressing a fitting to a cable and requires a significant force, such as a hydraulic press, to form a secure attachment. Swaging provides the best holding strength for all types of end fittings and any given bill of materials.

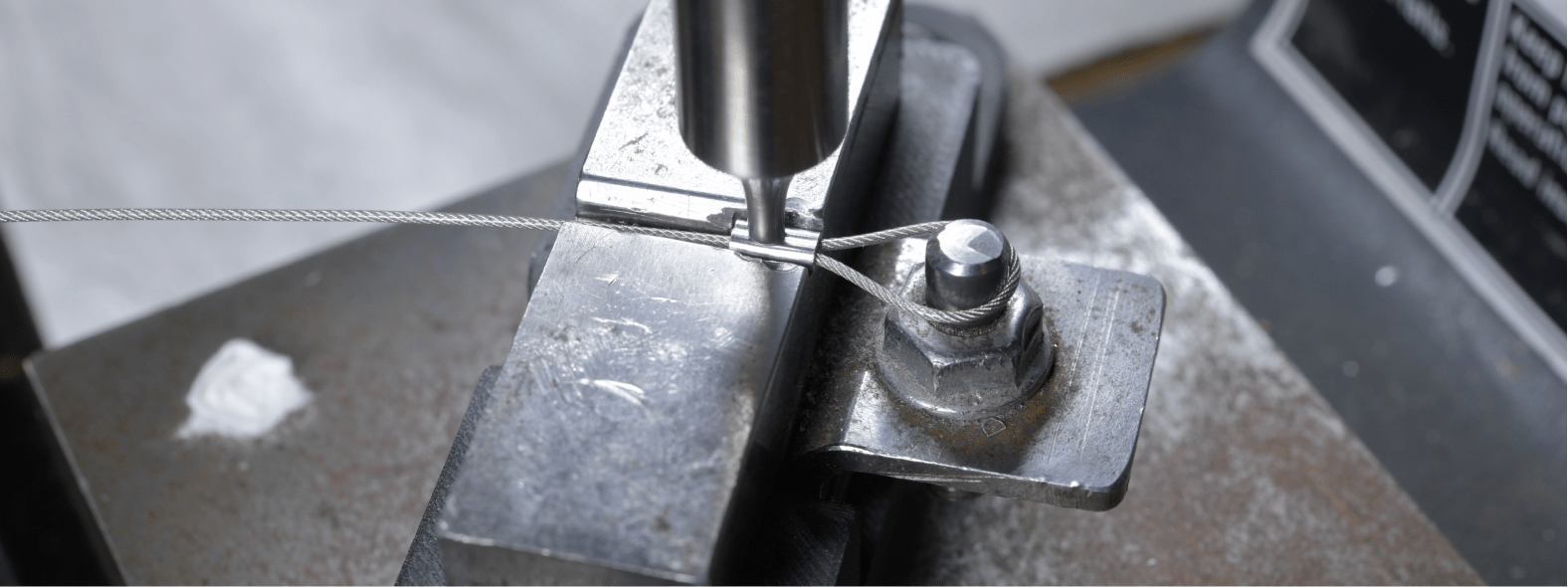

Alternatively, the process of joining a cable and an end fitting by pinching or staking and thereby attaching them is known as crimping. Crimping can be done using hand tools but is only suitable for a select number of fittings and does not apply the same level of holding strength as a swaged fitting.

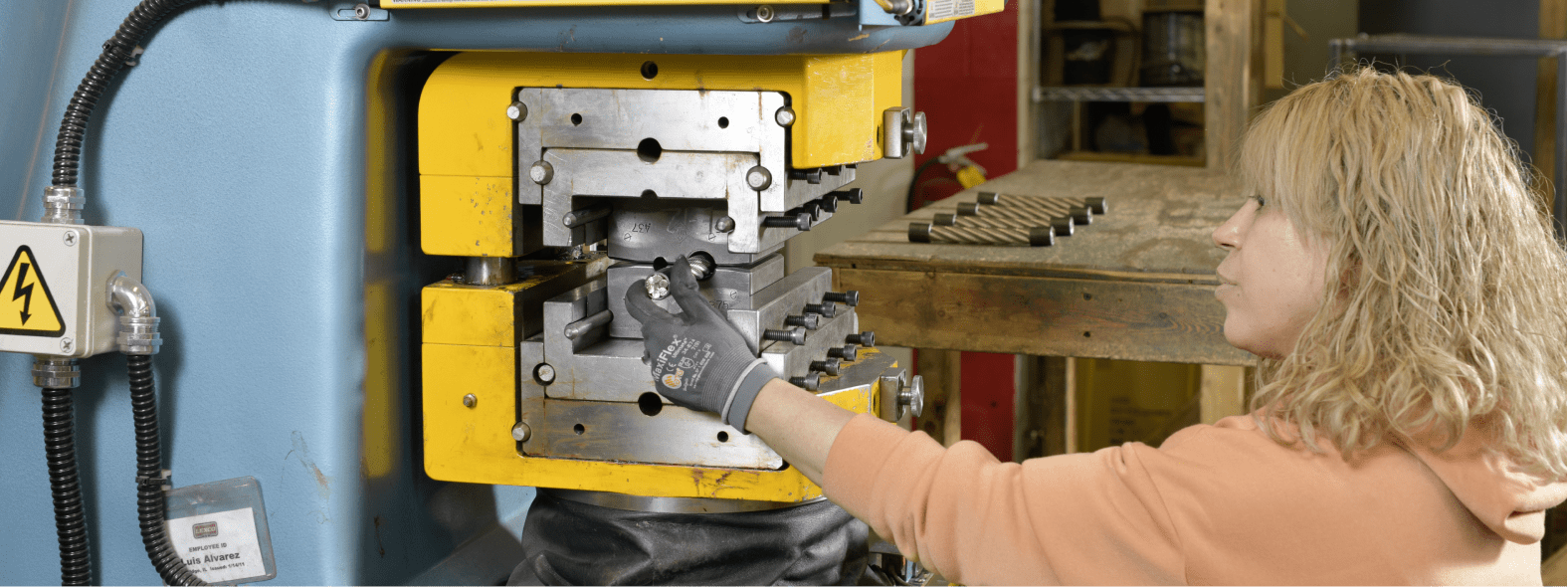

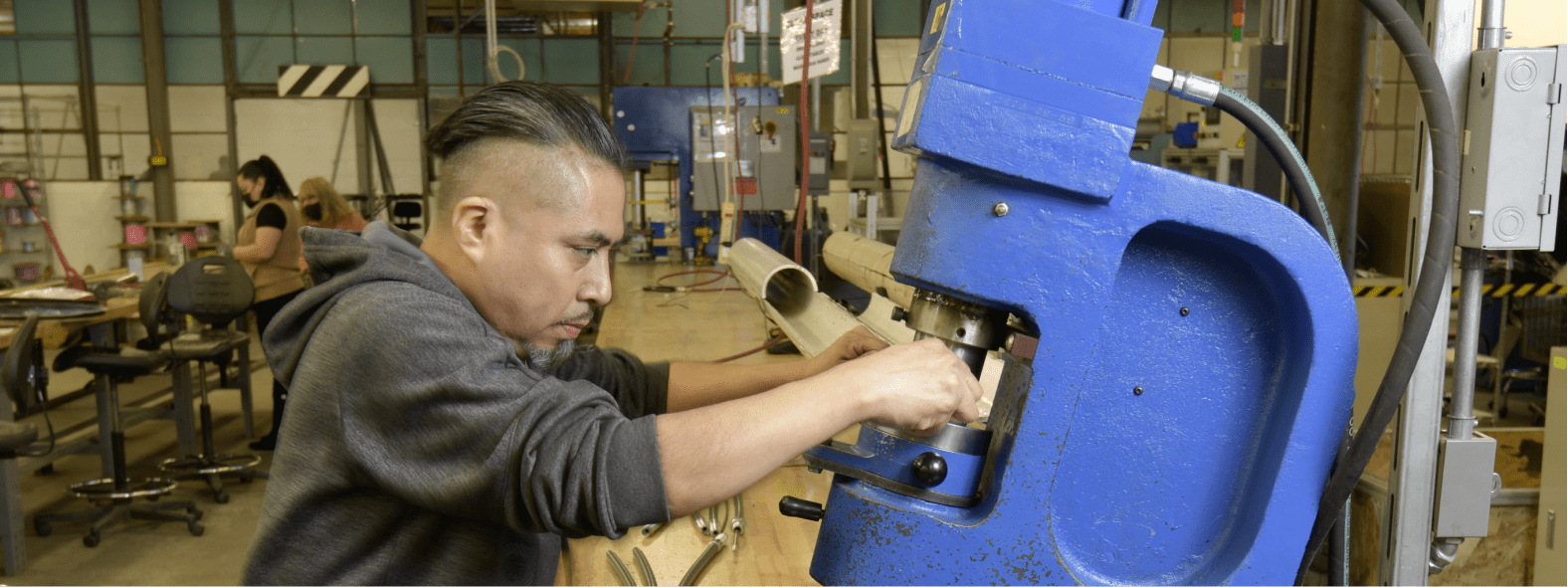

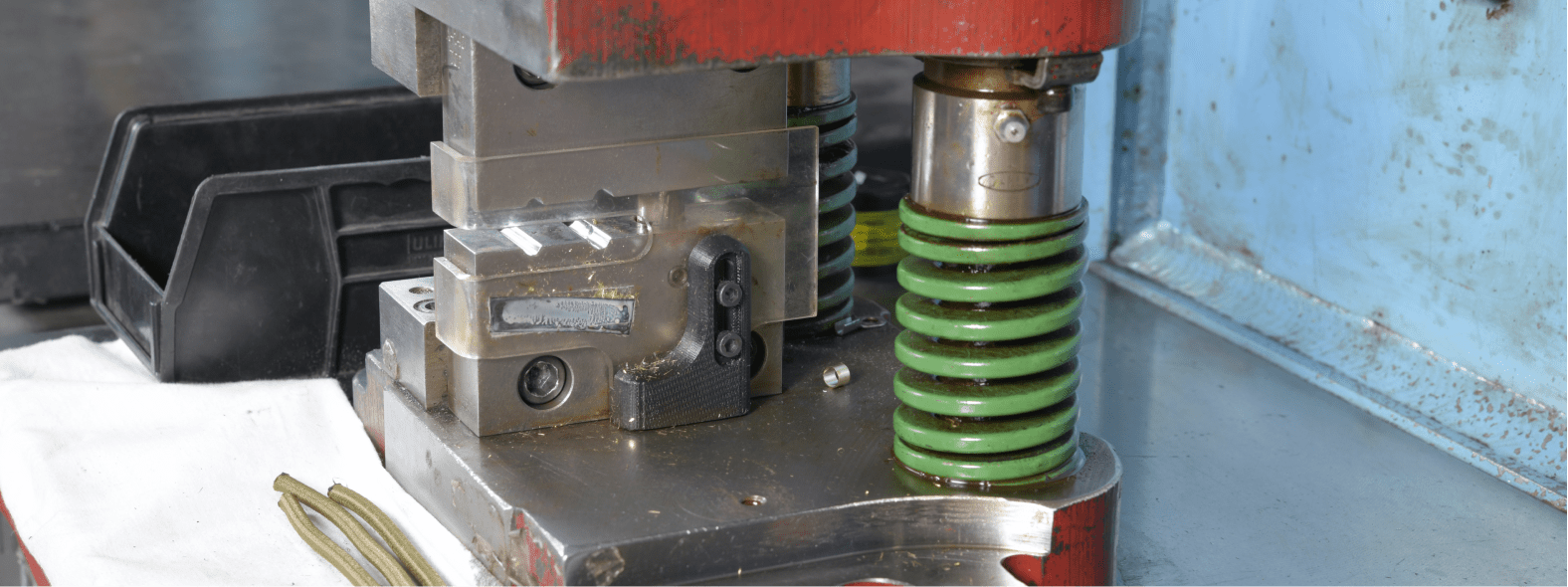

Lexco's assembly production department can swage press fittings onto wire ropes through 1” diameter. Using our specialized hydraulic presses and long dies, we're commonly able to swage entire attachments in a single pressing. These tools ensure your swaged fittings are attached securely, efficiently, and with a uniform pressing in a process that is consistent across every one of your cable assembly end fittings.

Swaging also minimizes flash. Flash most commonly occurs when manually crimping end fittings using hand tools and results in an aesthetically unpleasing look and may result in sharp edges. As crimping is best suited for fieldwork, Lexco® has several different hand crimping and hand swaging tools available in our catalog.

In addition to swaged and crimped wire rope fittings, we also provide bungee assembly crimping. Lexco's bungee assembly crimping is done via a process similar to stitching using specially designed tools. We also offer swageless fittings that are convenient for job sites as they require only minimal use of tools.

Lexco® has the tools, machines, and expertise you can depend on for almost any type of fitting or attachment your cable assembly application requires.

Commonly Attached
Fittings

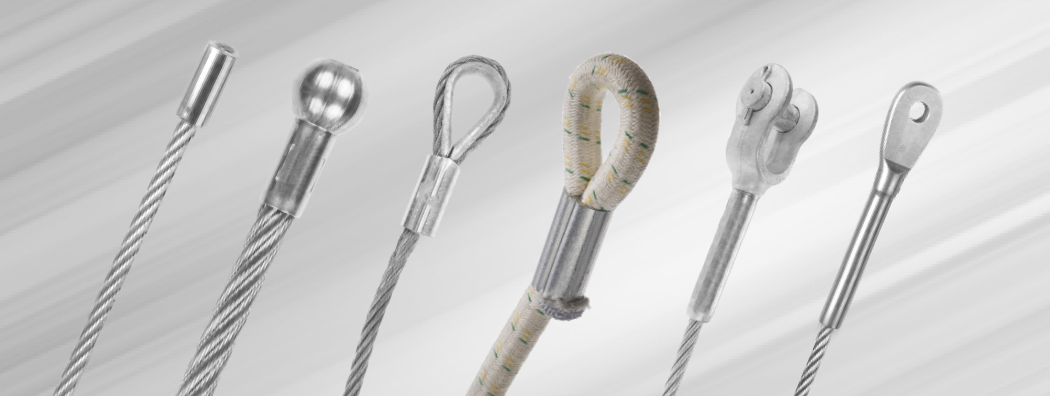

Lexco offers an extensive variety of fittings for use with swaged, crimped, and swageless attachments. Discover some of our most commonly requested fittings below or visit our catalog to view a complete list. For help finding your ideal fitting and attachment, you can also contact us directly.

  • Button Stops
  • Sleeves
  • Plain Balls
  • Shank Balls
  • Eye Ends
  • Fork & Jaw Ends
  • Threaded Studs & Plugs
  • Swageless Fittings
  • Cable Jointers
  • Marine Rigging Turnbuckles
  • Shank Hooks
  • Die-Cast Fittings
  • And More

Who We
Work With

Lexco’s swaged, crimped, and swageless fittings are ideal for everything from general-purpose applications to specialized and custom use cases. Among the partners and industries we are proud to support are:
